Cleanroom Paneling System

Cleanroom Paneling System

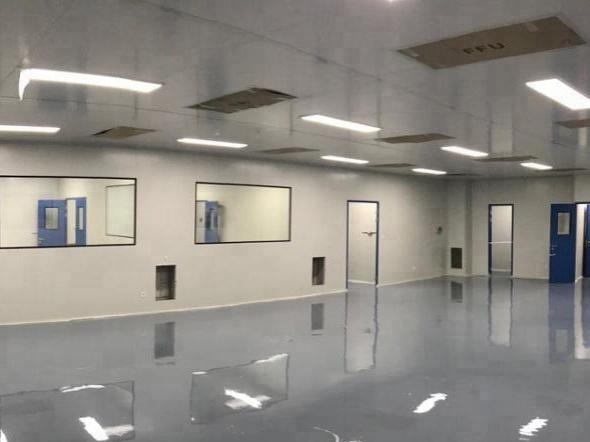

Cleanroom Wall and Ceiling Systems
Whether you need wall panels or ceiling panels for modular cleanrooms or operating theaters, Jinyi offers an extensive array. Simply browse the following to find the ones best suited for your needs. If none of those listed work, please do not hesitate to reach out to us for customized solutions.

1. Laminated steel sheet with electrolytic polishing

This steel sheet is ideal for walls and ceiling panels in operating theaters. It is wear-resistant and will retain its color for a significant number of years. We also offer custom modular steel plates that are easy to install or remove, making them reusable. Users can also freely change the size.
Thickness: 50mm, 75mm, 100mm or custom size
Structure: 1.2mmd laminated steel sheet filled with magnesium sulfide or phenolic or silica rock + coating

2. Coated steel sheet with electrolytic polishing

This steel sheet is ideal for walls and ceiling panels in operating theaters and feature a low cost. We also offer custom modular steel sheets that are easy to install.
Thickness: 50mm, 75mm, 100mm or custom size
Structure: 1.2mmd laminated steel sheet filled with magnesium sulfide or phenolic or silica rock filled in + coating

3. Magnesium oxysulfide sandwich panel (MOS board)

This board features a double bearing capacity in comparison with MGO sandwich panels, ensuring it is structurally stable and aging resistant with a service life of at least 20 years. It will not be affected by weather, temperature, or humidity conditions in the labs, and features an exceptional fire resistance. If one side of the board is exposed to a high temperature, it will not be felt on the other side. The surface is also extremely flat, with a flatness error controlled within 0.1mm due to a one-time cutting process via precision machine. It is often used in clean workshops with higher requirements for fire-resistant performances.
Thickness: 50mm, 75mm, 100mm or custom size
Color: Custom

4. Sandwich panel with rock wool and magnesium combined as insulating layer

The board shares the same advantages as the MGO sandwich board and features an exceptional performance for heat preservation and sound insulation, as well as fire resistance. This material is widely used in clean workshops with higher requirements for a fire resistant performance.
Thickness: 50mm, 75mm, 100mm or custom size
Color: Custom

5. Magnesium Sandwich Panel

The hand-made magnesium sandwich board connected using galvanized keels and glue features a higher intensity and stability than a machine made board. It also features a better installation, ensuring it is ideal for use in workshops with higher cleanliness requirements, including pharmacy and medicine, electronics, food and beverage.
Thickness: 50mm, 75mm, 100mm or custom size
Color: Custom

6. Rock Wool Sandwich Panel

This board features a high intensity and density with more than 60 minutes of fire resistance and is capable of withstanding temperatures higher than 900℃. This board’s sound insulation conforms to ISO 717/82&UNI18270/7 standards, and it is most often used in locations requiring a higher sound insulation, such as clean workshops, removable houses, lofts, and indoor partitions.
Thickness: 50mm, 75mm, 100mm or custom size
Color: Custom

7. EPS Sandwich Panel

This board features a high bearing capacity, an excellent heat and sound insulation, and flame-resistant performance. It is light weight, weighing only 8-18kg/㎡, making it easy to install. This board is widely used in places with higher requirements for sound installation, such as clean workshops, removable houses, lofts, and indoor partitions.
Thickness: 50mm, 75mm, 100mm, 125mm,150mm,200mm or custom size
Color: Custom

8. XPS Sandwich Panel

This board is lightweight but features a high intensity, as well as a low moisture absorption and excellent performance for heat and sound insulation and flame resistance. It is widely used in clean workshops, removable houses, and refrigeration storage.
Thickness: 50mm, 75mm, 100mm, 125mm,150mm,200mm or custom size
Color: Custom
